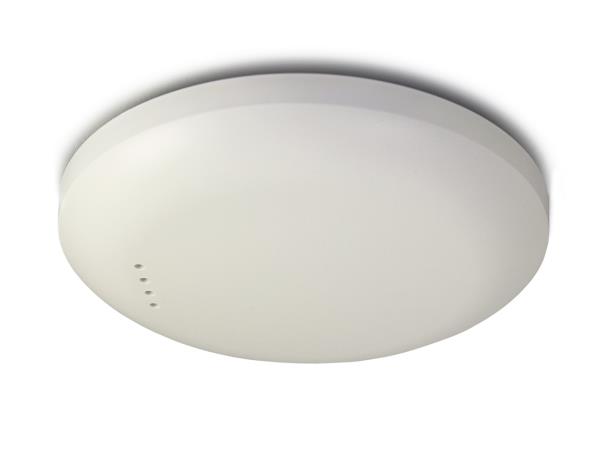

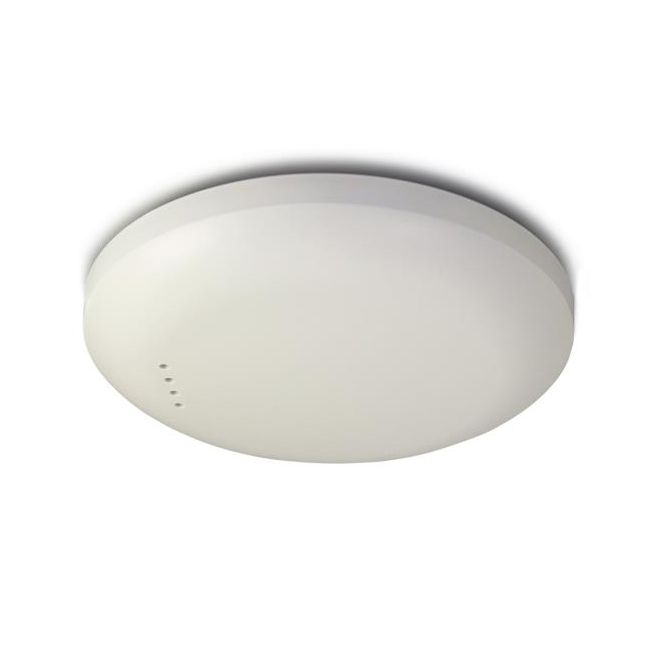

This tiny, tool-free ceiling enclosure is part of the Open-Mesh Modular WiFi Mesh Platform and has been designed exclusively for OM2P series (HS and LC only) access points. The access point is completely hidden inside, with only the lights showing through. It can attach to 9/16" and 15/16" drop ceiling rails, and can also be mounted on any solid wall or ceiling using the enclosed mount. The case adjusts to three heights, tool-free.
To install, simply use the correct clips for either 9/16" or 15/16" drop ceiling rails, clip them in at your preferred height, add an access point and clip into place. To mount on a standard ceiling or wall, attach the 15/16" clips to the case and attach the wall/ceiling mount to the wall. Drop in an access point and clip the case into place.
UL 94 HB flammability rated and Rohs compliant.

Patent pending.

Dimensions: D=3.3 to 4.5cm (1.3-1.8"), W=15.9cm round ( 6.25")
